Hive_One Ventilation Integration
Silent mining + whole-home heating through your ventilation system

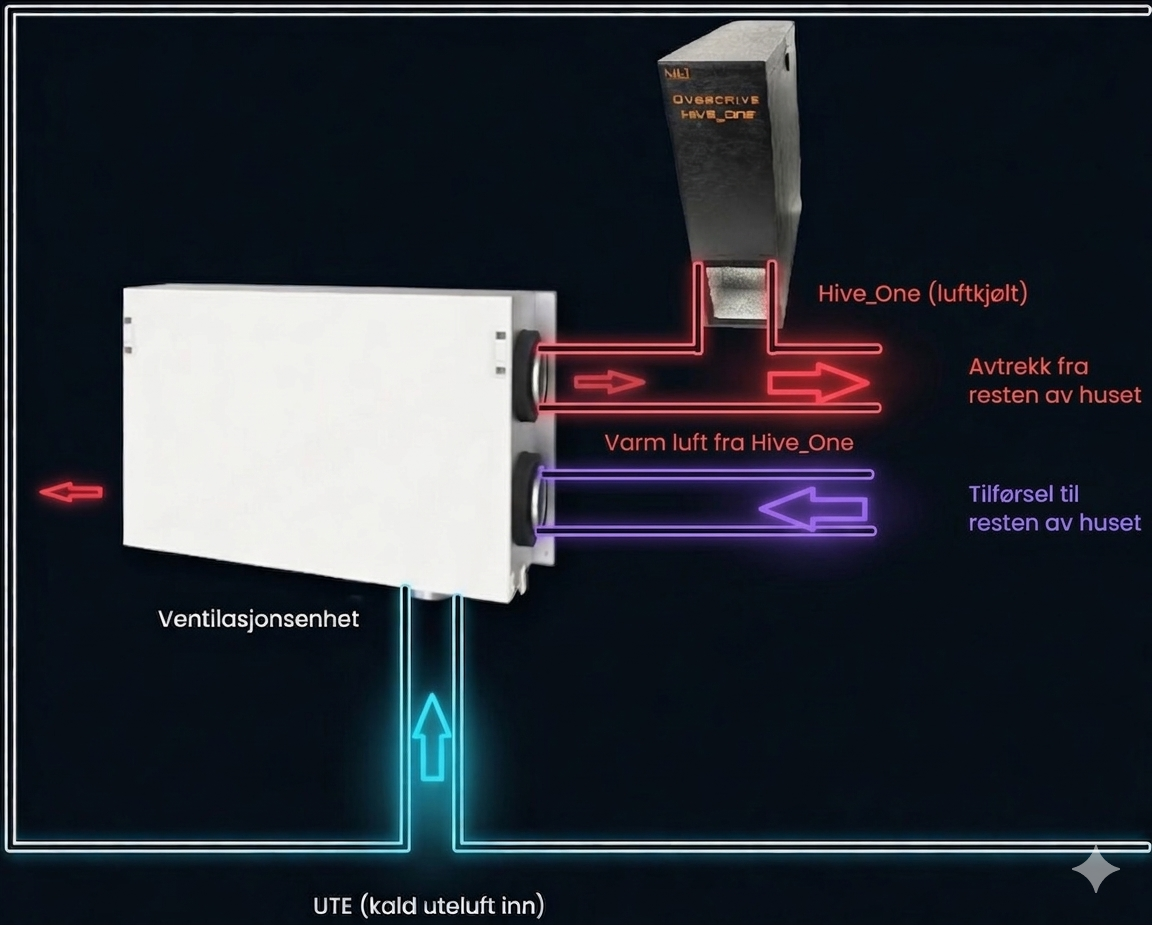

Hive_One connected to a balanced ventilation unit — waste heat distributed through the house
What is the Hive_One?
The Hive_One is a noise-cancelling enclosure for a standard air-cooled Bitcoin miner. It drops operating noise to around 55 dB — quiet enough to sit in a utility room, basement, garage, or even near living spaces — while producing up to 4 kW of heat. That makes it a perfect candidate for whole-home heating through your ventilation system.
Why integrate it with ventilation?
A miner running inside a closed room heats only that room. By routing the hot exhaust air into your ventilation ducts, the heat gets distributed evenly through every room in the house — turning your mining box into a silent, always-on heat source.
- Nearly 100% heat efficiency — almost all the electricity consumed ends up as usable heat
- No hot spots — heat is spread via existing supply vents
- Fresh air at the same time — the HRV brings in outside air while mixing in miner heat
- Quiet enough for indoor placement — the Hive_One handles the noise, ventilation handles the heat
Two Integration Scenarios
🏠 Scenario 1: Active Ventilation (HRV / Balansert Ventilasjon)
If your home has balanced ventilation with heat recovery (a common setup in modern Norwegian homes), this is the ideal integration. The Hive_One is placed in the same technical room as the HRV unit.
- Connect a flex duct from the Hive_One's exhaust outlet into the return air duct of the HRV, or into the room where the HRV draws return air from
- The HRV pulls the warm air through its heat exchanger and distributes it via the supply vents to every room
- Add a bypass damper or summer vent so you can exhaust directly outside when heating isn't needed
- A backdraft damper prevents cold air from backing up into the miner when it's off
Typical result: 2–4 kW of mining heat distributed evenly to every room, with fresh filtered air circulating at the same time.
🌬️ Scenario 2: Passive / Natural Ventilation
If your home uses natural ventilation (older buildings, cabins, garages, outbuildings), you can still integrate the Hive_One — just more directly.
- Place the Hive_One in a central location where its exhaust can reach the rooms you want to heat
- Connect a flex duct or fixed pipe from the exhaust to an overflow vent, transfer grille, or wall passage
- Use the stack effect — hot air naturally rises, so place the miner lower and vent the heat upward
- Keep a return path open so cold air can move back toward the miner (otherwise airflow stalls)
- Add a simple inline boost fan if you need to push heat further than natural convection allows
Works great in cabins, workshops, garages, and single-floor buildings where ducted HVAC isn't available.
Installation Basics
- Exhaust diameter: Standard flex duct (typically Ø125–160 mm) fits most ventilation outlets
- Location: Utility room, technical closet, basement, or garage — wherever your HRV or main duct runs
- Electrical: 230V outlet on a dedicated 16A circuit (Hive_One pulls up to 4 kW)
- Internet: Ethernet or WiFi for pool connection and remote monitoring via The Hive
- Thermostatic control: Use Hive_Control with Heatmode to regulate power output based on room temperature
💡 Pro tip: Pair the Hive_One with an external temperature sensor in the room you want to heat. Hive_Control's Heatmode will then automatically ramp the miner's power up or down to maintain a target temperature — just like a thermostat, but it mines Bitcoin on the side.
What about summer?
When you don't need the heat, you have three options:
- Redirect exhaust outside — flip a diverter damper to vent straight out through a wall grille
- Lower the power — Hive_Control can throttle the miner down to around 1 kW, dumping less heat
- Turn it off — and just mine when electricity is cheap (Price Mode in Hive_Control)
Summary
The Hive_One is designed to live indoors and heat your home. Whether you have a modern HRV system or a simpler passive setup, routing its exhaust into your ventilation infrastructure turns it into a silent, distributed heat source — one that happens to mine Bitcoin while it's warming your house. No wasted heat, no noisy garage solution, just practical integration with what you already have.
